 Technical Specifications |
| RGB
Mode Support |
720×400 at 70Hz, 85Hz
640×480 at 60Hz, 70Hz, 72Hz, 75Hz, 85Hz
800×600 at 56Hz, 60Hz, 72Hz, 75Hz, 85Hz
1024×768 at 60Hz, 70Hz, 72Hz, 75Hz, 85Hz
1152×864 at 60Hz, 70Hz, 75Hz, 85Hz
1152×900 at 66Hz
1280×960 at 60Hz, 85Hz
1280×1024 at 60Hz, 70Hz, 85Hz, 85Hz
1600×1200 at 60Hz, 70Hz, 75Hz, 85Hz |

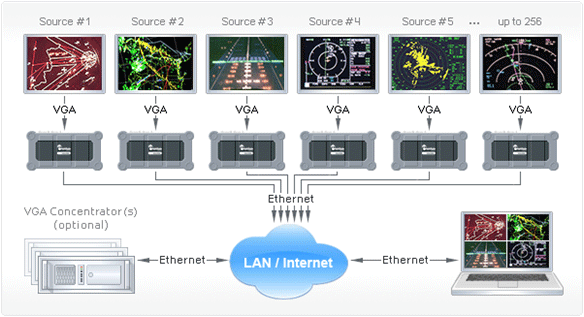

Number
of Channels
|
1 - 256
More channels can be added. Please contact Epiphan
for more info |
| Software
upgrade |
Yes |
| Broadcast
Rate |
640×480 : 1/60 - 30fps
1280×1024 : 1/60 - 30fps
2048×2048 : 1/60 - 10fps |
| Bitrate |
100kbps - 60Mbps per channel |

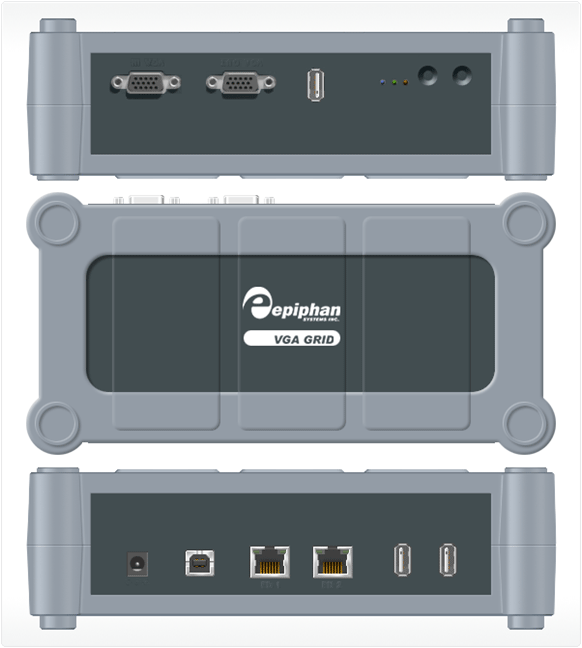

| Connectors |
2 VGA 'D' Type
2 RJ45 Gigabit Ethernet
1 USB |
| Additional
Hardware |
Integrated Active VGA Splitter |
| Features |
Integrated Active VGA Splitter
Internal 2-port Ethernet Hub |
| Operator's
Interface |
Web Interface |
| Special
Features |
No Moving Parts |
| Dimensions |
7.95"×4.13"×1.38",
202×105×35mm |
| Weight |
0.7 lb, 318 g |
|
|
