 COMMON APPLICATION |
· Precis DSP는 다양한 회의실 강의실 과 같은 곳에 설치하기에 이상적입니다. |
|
|
|
| FEATURES |
· Digital volume control on each output
· Digital input gain control to normalize audio input voltages
· Superior crosstalk specifications ensure signal isolation and security
· Gold-plated RCA connectors
· 10-band graphic equalizer on each output
· Digital balance, tone and volume control
· Standard RS-232 control port
· Supports AutoPatch's simple BCS serial control protocol
· Optional TCP/IP control via external APWeb module
· Ships with free APControl to provide easy single-user PC control of the matrix switcher
· Ships with free AutoPatch GraphicEQ setup software
· Rack mounting ears included
· Backed by our AMX 3 year warranty |
|
|
|
| SPECIFICATIONS |
|
|
|
|
| I/O RANGE |
· INPUTS: 8
· OUTPUTS: 8 |
|
|
|
| GENERAL |
· AC Power: 100-240 VAC single phase, 50-60 Hz
· Power Consumption (Max): 80 Watts per enclosure
· Power Consumption (Typ): 45 Watts per enclosure, fully loaded
· BTU/HR (Max): 273
· BTU/HR (Typ): 154
· Operational Temperature: 32° to 95° F (0° to 35° C)
· Humidity: 0 to 90% non-condensing |
|
|
|
| DIMENSIONS (WITH RACK EARS) |
· 1.7" x 19" x 9.75"
· 4.32 cm x 44.2 cm x 24.77 cm
· RU: 1 |
|
|
|
| WEIGHT |
| · Appx. 7 lbs (3.18 kg) |
|
|
|
| STANDARD AUDIO WITH DIGITAL VOLUME CONTROL |
· Input Level (Max): +14 dBu, unbalanced
· Input Impedance: 2 kOhms
· Output Level (Max): +14 dBu, unbalanced
· Output Impedance: <5 Ohms
· Frequency Response: <0 to -0.8 dB (20 Hz to 20 kHz)
· THD + Noise: <0.01% (1 kHz, Vin = -10 to +10 dBu)
· Signal to Noise Ratio: >90 dB (20 Hz to 20 kHz, Vin = +14 dBu)
· Crosstalk: <-115 dB (1 kHz, Vin = +14 dBu)
· Input Gain Adj. Range: +10 dB to -10 dB, via serial commands
· Input Volume Adj. Range: +10 dB to -70 dB (mute), via serial commands
· Coupling: AC Coupled
· Connectors: RCA (Gold-plated RCA connectors)
|
|
|
|
| AUDIO DSP FEATURES |
· TONE-BASS
* Low Pass Shelf @ 250 Hz
* -12 dB to +12 dB (in 0.5 dB increments)
· TONE-TREBLE
* High Pass Shelf @ 6 kHz
* -12 dB to +12 dB (in 0.5 dB increments)
· 10 BAND EQUALIZER
* 32 Hz, 64 Hz, 125 Hz, 250 Hz, 500 Hz
* 1 kHz, 4 kHz, 8 kHz, 16 kHz
* -12 dB to +12 dB (in 0.5 dB increments)
|
|
|
|

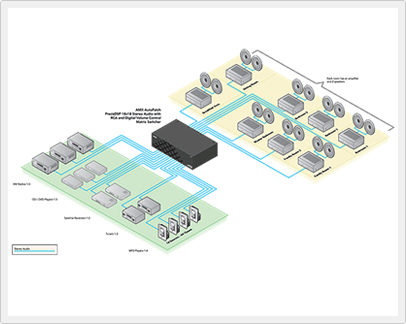

| Diagram |
 |
