| VGA2USB 소프트웨어는 비디오 입력으로 VGA2USB를 사용하기 위해서 다른 어플리케이션윈도우의
다이렉트 쇼와 맥 OS X의 퀵타임 이 호환된다. |
|
|
|

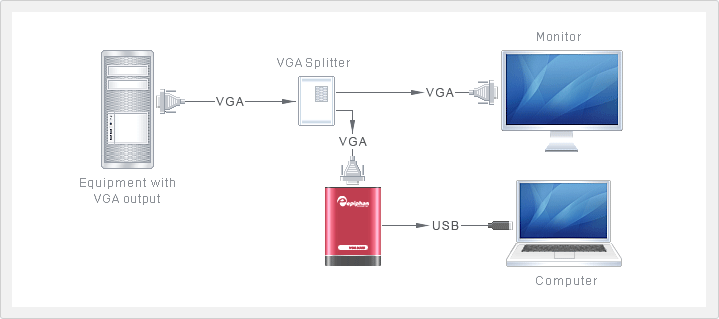

 KVGA2USB Connection Diagram |
 |
|
|
|
| Technical Specifications |
| Interface |
USB 2.0 |
| Dimensions |
3.54" x 2.36" x 0.91"
90 x 60 x 23 mm |

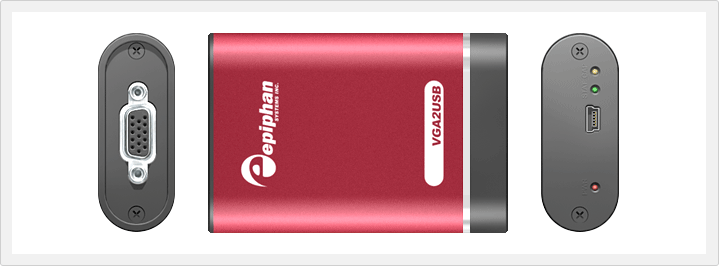

| Connectors |
One VGA D type connector, one
USB mini B type connector |
| Maximum
Sample Rate |
230 Mpixels per second |
| Color
Resolution |
16 bits per pixel / 5:6:5 format |
| Supported
Video Modes |
640x350 at 60, 85Hz
640x400 at 60, 85Hz
720x400 at 70, 85Hz
640x480 at 60, 70, 72, 75, 85Hz
800x600 at 56, 60, 70, 72, 75, 85Hz
1024x768 at 60, 70, 72, 75, 85Hz
1152x864 at 60, 70, 75, 85Hz
1152x900 at 66, 76Hz
1280x960 at 60, 85Hz
1280x1024 at 60, 70, 75, 85Hz
1600x1200 at 60, 65, 70, 75, 85Hz
1920x1200 at 60, 70, 72, 75, 85Hz
2048x1536 at 60, 70, 72, 75, 85Hz |
| Update
Rate |
While results are typically around
10 updates per second, here
are actual results under varying conditions: |
| Resolution
Win |
XP FPS 1 |
| 640 x 480 |
28.0 |
| 800 x 600 |
20.6 |
| 1024 x 768 |
10.0 |
| 1280 x 1024 |
5.6 |
| 1600 x 1200 |
4.3 |
| 1920 x 1200 |
3.1 |
| 2048 x 1536 |
2.0 |
|
|
| Video
Format Options |
RGB plus HSync and VSync (5 wire) |
| LEDs |
Three LEDs to indicate the status
of the VGA2USB (power, readiness, and operation
in progress) |
| OS Support |
Linux (x86, amd64), Windows 2000,
Windows XP, Windows
Vista (x86, amd64), Mac OS X 10.3 and up |
|
|
|
|

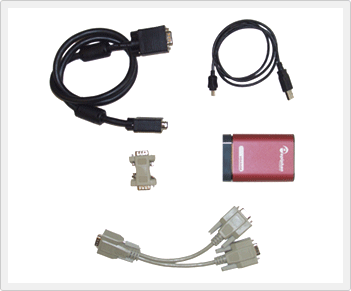

| 패키지 구성품 |
 |
|
