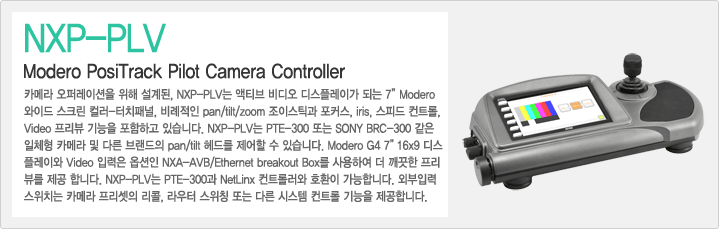

 FEATURES |
· controlling cameras
and camera positioning devices in rehearsal studios, sporting
events, concerts and other venues
· requiring standalone camera operation.
· Activates camera preset store/recall,
camera functions and system setup from on-screen color
graphics
· Accesses commonly-used
commands from buttons alongside LCD screen
· Directs pan, tilt and zoom from integrated 3-axis
joystick
· Eases operation with
comfortable wristpad
· Side-mounted
control knobs fine-tune focus, iris and speed
· Supports up to six cameras |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
| · 5” (including joystick)
x 17 5/8” x 8 5/8” (12.7 cm x 44.9 cm x21.7 cm) |
|
|
|
| WEIGHT |
| · 5.35 lb (2.43 kg) |
|
|
|
| POWER REQUIREMENTS |
· Constant current
draw: 1.07 A @ 12 VDC
· Startup
current draw: 1.27 A |
|
|
|
| MEMORY |
· 64 MB SDRAM
· 256 MB Compact Flash |
|
|
|
| ENCLOSURE |
| · Plastic with matte
charcoal grey finish and plastic rests |
|
|
|
| BUTTONS |
| · 6 pushbuttons on
the left side of the touchscreen to select cameras |
|
|
|
| VIDEO MONITOR |
| · 7-inch (152.40 mm)
color active-matrix LCD screen |
|
|
|
| VIDEO IN |
| · NXA-AVB/Ethernet,
NXA-AVB Breakout Box required (optional) |
|
|
|
| COMPATIBILITY |
| · NetLinx Central
Controllers |
|
|
|
| OPERATING/STORAGE ENVIRONMENTS |
· Operating Temperature:
0º C (32º F) to 40º C (104º F)
· Operating Humidity: 20% - 85% RH
· Storage Temperature: -20º C (-4º F)
to 60º C (140º F)
· Storage Humidity: 5% - 85% RH |
|
|
|
| REAR CONNECTORS |
· Footswitch Connector:
1/4” (6.35mm) tip sleeve input jack for optional momentary
footswitch control
· Mini-USB Connector: 5-pin Mini-USB
connector used for programming, firm- ware update, and
touch panel file transfer
· between
the PC and the target panel
· Stereo Output Connector: Stereo output
through a 3.5mm minijack (for use with external speakers
or headphones)
· Ethernet 10/100 Port: RJ-45 port for
10/100 Mbps communication
· USB Connector: Type A USB port connects
an external keyboard or mouse device for use with Virtual
PC applications
· Audio/Video Connector: RJ-45 connection
for A/V signals (via CAT5) between the NXA-AVB/ETHERNET
Breakout Box
· and the
panel. (optional)
· POWER: 2-pin 3.5 mm captive wire connector |
|
|
|
| BUTTON ASSIGNMENTS |
· Button assignments
can only be adjusted in TPD4 and not on the device’s touch
screen
· Button channel range: 1 - 4000 button
push and feedback (per address port)
· Button variable text range: 1 - 4000
(per address port)
· Button states range: 1 - 256 (General
Button; 1 = Off State, 2 = On State)
· Level range: 1 - 600 (default level
value 0-255, can be set up to 1-65535)
· Address port range: 1 - 100
· Panel type: TFT Color Active-Matrix
· NOTE: The NXP-PLV reserves channels
1-7 and levels 1-11 on Port 1 for hardware functions.
These channels/levels are
· considered
reserved by the device and cannot be used for button assignments |
|
|
|
| PANEL LCD PARAMETERS |
· Aspect ratio: 16
x 9
· Brightness (luminance): 350 cd/m2
· Channel transparency: 8-bit Alpha blending
· Contrast ratio: 200:1
· Display colors: 256 thousand colors
(18-bit color depth)
· Dot/pixel pitch: 0.19 mm
· Panel type: TFT Color Active-Matrix
· Screen resolution: 800 x 480 pixels
(HV) @ 60 Hz frame frequency
· Video format: NTSC, PAL, and SECAM
· Viewing angles (100º total viewing
angle)
· Vertical: + 50º (up from center) and
- 50º (down from center) |
|
|
|

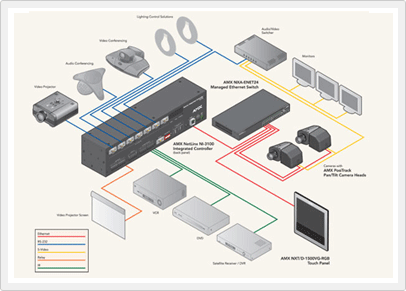

| Diagram |
 |
