 Technical Specifications |
| RGB
Mode Support |
720×400 at 70Hz, 85Hz
640×480 at 60Hz, 70Hz, 72Hz, 75Hz, 85Hz
800×600 at 56Hz, 60Hz, 72Hz, 75Hz, 85Hz
1024×768 at 60Hz, 70Hz, 72Hz, 75Hz, 85Hz
1152×864 at 60Hz, 70Hz, 75Hz, 85Hz
1152×900 at 66Hz
1280×960 at 60Hz, 85Hz
1280×1024 at 60Hz, 70Hz, 85Hz, 85Hz
1600×1200 at 60Hz, 70Hz, 75Hz, 85Hz |
| Scalability |
Up to 25 participants
More participants can be added. Please contact Epiphan for more info |
| Software
upgrade |
Yes |
| Frame
rate |
1-3 frame per second |
| Feedback
monitor |
Full screen optional |
| Compression |
MPEG4, H.264 |

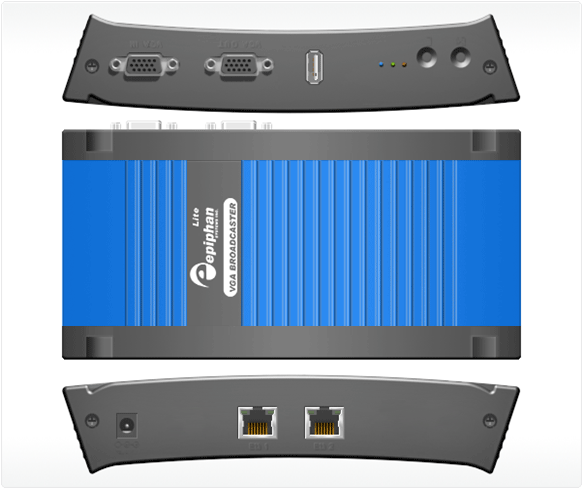

| Connectors |
2 VGA 'D' Type
2 RJ45 Gigabit Ethernet
1 USB (for Epiphan Graphical Controller™) |
| Bandwidth |
400 kbs |
| Additional
Hardware |
Integrated Active VGA Splitter
Features Internal 2-port Ethernet Hub |
| Features |
Internal 2-port Ethernet Hub |
| Viewer
Application |
VLC Player, Windows Media Player |
| Operator's
Interface |
Web Interface |
| Special
Features |
No Moving Parts |
| Dimensions |
7.95"×4.13"×1.38", 202×105×35mm |
| Weight |
1.4 lb, 635 g |
|
|
