 Specs(Video Input) |
| Signal
Format |
Composite, S-Video,
DVI 1.0 HDCP, YPbPr*, RGBHV*, RGsB*
*Requires optional breakout cable, see accessories |
| Support
Resolutions |
1080p, 1080i, 720p, 576i, 576p,
480i, 480p, VGA, SVGA, XGA, SXGA, UXGA, WVGA, WXGA,
WUXGA (narrow band sync), user programmable resolutions |

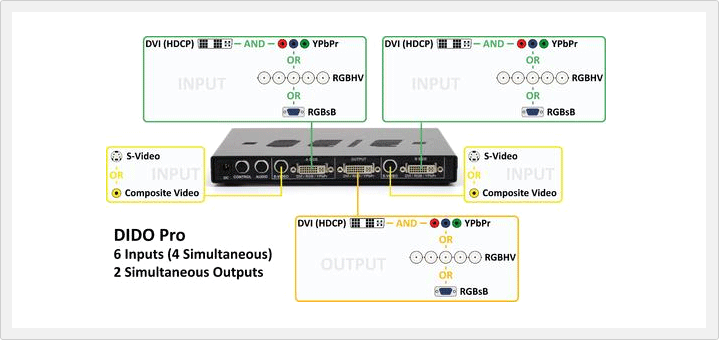

| Connectors |
Two 4-pin mini DIN female S-Video
(Can be used as composite input with supplied RCA
adaptors)
Two DVI-I (Dual Input, RGBHV* or RGsB* or YPbPr*
+ DVI)
*Requires optional breakout cable, see accessories |
|
|
|
|
| Specs(Video Output) |
| Signal
Format |
DVI 1.0 HDCP, YPbPr*,
RGBHV*, RGsB*
*Requires optional breakout cable, see accessories |
| Support
Resolutions |
1080p, 720p, 576p, 480p, VGA,
SVGA, XGA, SXGA, UXGA, WVGA, WXGA, WUXGA (narrow
band sync), user programmable resolutions |

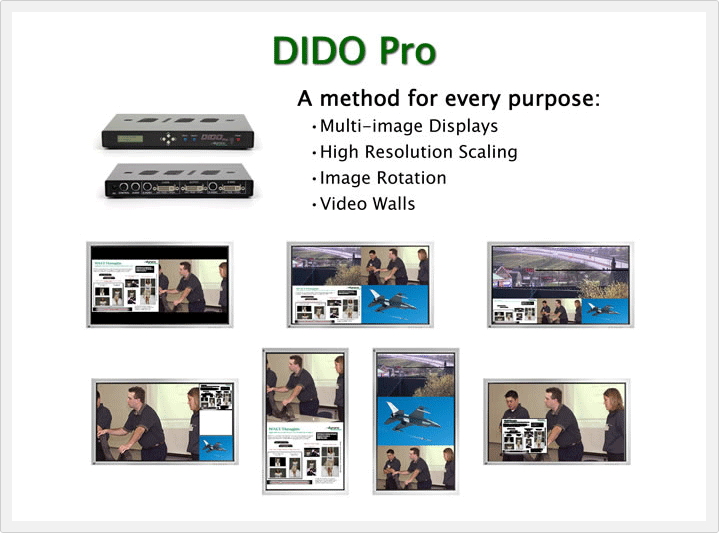

| Supported
Window Modes |
Single, PiP, Translucent PiP,
Side-by-Side, Tri Image, Quad Image.
All modes except quad can be rotated in real time
at 90 degree increments. Mirror modes are also supported. |
| Connectors |
One DVI-I (Dual Output, RGBHV*
or RGsB* or YPbPr* + DVI)
*Requires optional breakout cable, see accessories |
|
|
|
|
| Specs(Audio Input) |
| Connectors |
2 x Stereo RCA phono
female and 2 S/PDIF RCA using audio breakout cable |
| Inputs |
Unbalanced stereo line level and
48KHz digital |
|
|
|
|
| Specs(Audio Output) |
| Connectors |
One Stereo RCA phono
female and 1 S/PDIF RCA using supplied audio breakout
cable (Audio signals are compensated for propagation
delay for correct sync with video.) |
| Output |
Unbalanced stereo line level and
48KHz digital
(Audio signals are compensated for propagation delay
for correct sync with video.) |
| Output
Level |
+12dB to -114dB in 64 steps |
|
|
|
|
| Specs(Power) |
| Operating
Voltage |
12 VDC (14W) |
|
|
|
|
| Specs(Control) |
| Connector |
6-pin mini DIN female
(DB-9 Serial Port cable is included) |
| RS-232
Baud Rate |
2400 - 115200 bps (Selectable) |
|
|
|
|
| Specs(Physical) |
| Dimensions
(WxDxH) |
8.4 x 5.7 x 1.0 inches |
| Weight |
2.5 lbs. (DIDO Pro only)
4.3 lbs. (Shipping weight) |
|
|
