 Technical Specifications |
| RGB
Mode Support |
720×400 at 70Hz, 85Hz
640×480 at 60Hz, 70Hz, 72Hz, 75Hz, 85Hz
800×600 at 56Hz, 60Hz, 72Hz, 75Hz, 85Hz
1024×768 at 60Hz, 70Hz, 72Hz, 75Hz, 85Hz
1152×864 at 60Hz, 70Hz, 75Hz, 85Hz
1152×900 at 66Hz
1280×960 at 60Hz, 85Hz
1280×1024 at 60Hz, 70Hz, 85Hz, 85Hz
1600×1200 at 60Hz, 70Hz, 75Hz, 85Hz |
| VGA Signaling |
R, G, B plus separate HSYNC and VSYNC signals;
R,G, B plus CSYNC signal;
R,G, B with Sync-On-Green synchronization |
| Software
upgrade |
Yes |
| Broadcast Rate |
640×480: 15 - 30fps
1280×1024: 10 - 20fps
1600×1200: 5 - 15fps
|
| Bit rate |
100kbps - 100Mbps per channel |
| Compression |
MPEG4, H.264 |

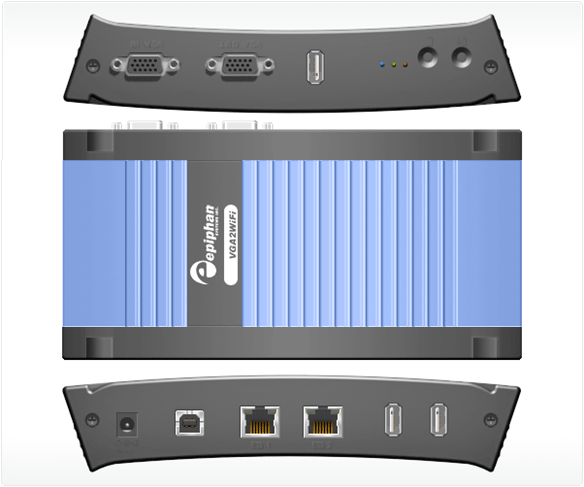

| Connectors/Interface |
1 Wi-Fi 802.11g antenna
2 VGA 'D' Type
2 RJ45 Gigabit Ethernet
1 USB |
| Additional Hardware |
Integrated Active VGA Splitter |
| Features |
Internal 2-port Ethernet Hub |
| Operator's Interface |
Web Interface |
| Special Features |
No Moving Parts |
| Dimensions |
7.95"×4.13"×1.38", 202×105×35mm |
| Weight |
0.7 lb, 318 g |
|
|
