 FEATURES |
· 7” active-matrix display with 16:9 aspect ratio
· Screen Resolution (HW): 800 x 480 pixels
· Display colors: 262K (18-bit color depth)
· Anti-glare Overlay
· Supports analog stereo audio, Composite Video and S-Video
· Composite/S-Video inputs via NXA-AVB/Ethernet Breakout Box
· Playback of MP3 and WAV audio files
· Built-in Speakers (2) and microphone
· Motion Sensor (PIR) and Light Sensor
· 64 MB SDRAM / 512 MB CompactFlash Memory or more
· Wired 10/100 Ethernet
|
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
| · 6 7/8" x 7 15/16" x 7 7/16" (17.4 cm x 20.2 cm x 19.0 cm) |
|
|
|
| WEIGHT |
| · 3.49 lbs (1.58 kg) |
|
|
|
| POWER |
· Constant current draw: 1.0 A @ 12 VDC (stand alone)
· Startup current draw: 1.5 A @ 12 VDC (stand alone)
· Minimum Power Supply Required: PSN2.8 Power Supply (FG423-17)
· (Using accessories can increase the power draw requirements) |
|
|
|
| MEMORY |
· 64 MB on-board memory
· 512 MB Compact Flash (upgradable to 1 GB factory programmed) |
|
|
|
| PANEL LCD PARAMETERS |
· Aspect ratio: 16:9
· Brightness: 350 cd/m2
· Channel transparency: 8-bit Alpha blending
· Contrast ratio: 250:1
· Display colors: 256K (18-bit color depth)
· Dot/pixel pitch: 0.28 mm
· Screen resolution (HV): 800 X 480 pixels @ 60
Hz frame frequency
· Video formats:
NTSC, PAL, and SECAM |
|
|
|

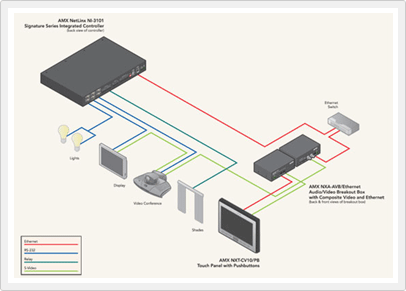

| Diagram |
 |
