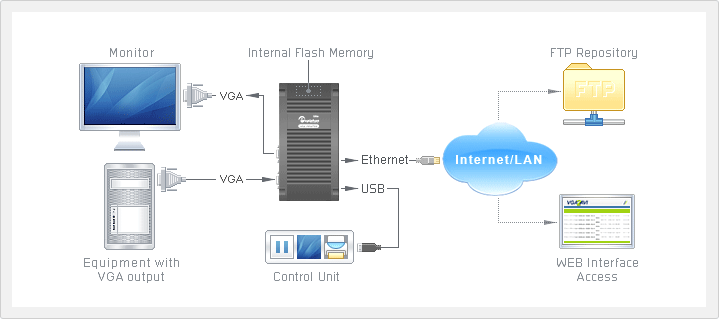

 DVI2USB Connection Diagram |
 |
|
|
|

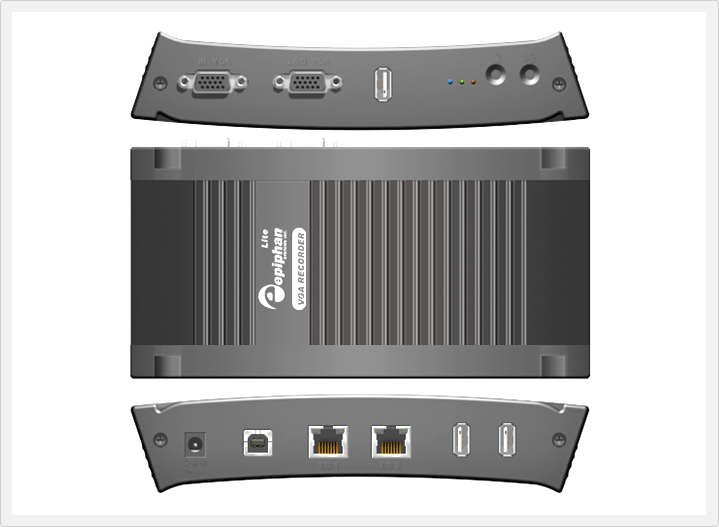

| Technical Specifications |
| Interface |
VGA (HD15 type connector) |
| Dimensions |
7.95"×4.13"×1.38",
202×105×35mm
170 x 109 x 30 mm |
| Video
Codec |
MPEG 4
H.264 |
| Video
Bit Rates |
100 kbit/sec
400 kbit/sec
800 kbit/sec
1200 kbit/sec
2000 kbit/sec
4000 kbit/sec
6000 kbit/sec
8000 kbit/sec
10,000 kbit/sec
16,000 kbit/sec |
| Key Frames |
1,5,20,50,100,200,500,1000 |
| Color
Resolution |
16 bits per pixel, YUY2 (422) |
| Mode
support |
720x400 at 70, 85Hz
640x480 at 60, 70, 72, 75, 85Hz
800x600 at 56, 60, 70, 72, 75, 85Hz
1024x768 at 60, 70, 72, 75, 85Hz
1152x864 at 60, 70, 75, 85Hz
1152x900 at 66, 76Hz
1280x960 at 60, 85Hz
1280x1024 at 60, 70, 75, 85Hz
1600x1200 at 60, 65, 70, 75, 85Hz |
| Update
Rate |
Typical frame rates under different
conditions: |
| Resolution |
DVI2USB fps |
| 640 x 480 |
10.0 |
| 800 x 600 |
7.0 |
| 1024 x 768 |
5.0 |
| 1280 x 1024 |
3.4 |
| 1600 x 1200 |
2.2 |
|
|
| Video
Format Options |
RGB plus HSync and VSync (5 wire)
R, G, B plus CSYNC signal;
R, G, B with Sync-on-Green synchronization |
| Max Frame
Rate |
Up to 10 fps |
| Storage
Space |
32GB |
| Video
Filters |
Frame Timestamping (selectable
timestamp position) |
| Player
Application |
Web, FTP, DVD writer, automatic
FTP upload, automatic RSYNC synhronization. |
| Access
to Recorded Files |
Up to 10 fps |
| Operator's
Interface |
Epiphan Graphical Controller™,
Web |
| Time
Synchronization |
NTP, TIME (RFC 868) |
| Special
Features |
No moving parts |
| Weight |
0.7 lb, 318 g |
|
|
