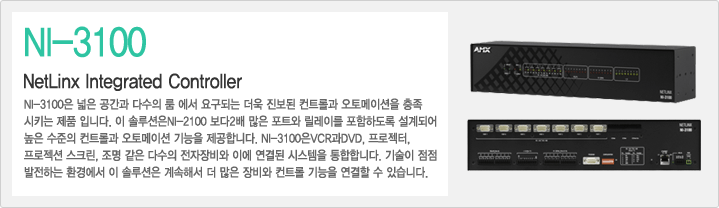

 FEATURES |
· 8 IR / Serial ports
· 8 Digital I/O ports
· 8 Relays
· 7 Configurable
RS-232 / RS-422 / RS-485 Serial port
· 2
Communication Networks: AxLink and Ethernet (TCP/IP)
· 404 MIPS processor speed
· 64 MB RAM
· 512 MB CompactFlash
(upgradeable to 1 G)
· 1 MB Non-Volatile
Memory
· AMX Device Discovery enabled |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
· 3 1/2” x 17” x 3
1/2” (8.8 cm x 43.2 cm x 8.8 cm)
· RU:
2 |
|
|
|
| WEIGHT |
· 4.55 lbs (2.06 kg)
POWER REQUIREMENT
· 900 mA @ 12 VDC |
|
|
|
| MEMORY |
· 64 MB SDRAM
· 1 MB of Non-volatile SRAM |
|
|
|
| COMPACT FLASH |
· 512 MB Card (upgradeable)
MICROPROCESSOR
· 404
MIPS |
|
|
|
| ENCLOSURE |
| · Metal with black
matte finish |
|
|
|
| FRONT PANEL COMPONENTS |
· LINK/ACT
· Status: Green LED blinks to indicate that the
system is programmed and communicating properly
· Output: Red LED blinks when the Controller transmits
data, sets channels and sends data strings, etc.
· Input: Yellow LED blinks when the Controller
receives data from button pushes, strings, commands, channel
levels, etc.
· RS-232/422/485 LEDs
· Relay LEDs
· IR/Serial
LEDs
· I/O LEDs
· Rack-mount
brackets: Provides an installation option for the Integrated
Controller to be mounted into an equipment rack,
· when used with the Installation Kit (KA2105-01) |
|
|
|
| REAR PANEL CONNECTORS |
· RS-232/422/485 (Ports
1 - 7)
· ICSNet: Two RJ-45 connectors for ICSNet
interface (provided by ICSNet daughter card)
· ICSHub Out: RJ-45 connector provides
data to a Hub connected to the Controller (provided by
ICSNet daughter card)
· Relay (Port 8)
· Digital I/O (Port 17)
· IR/Serial (Ports 9-16)
· Program Port
· Configuration DIP Switch: Sets the
communication parameters for the Program port
· ID Pushbutton
· Ethernet Port: RJ-45 port for 10/100
Mbps communication. LEDs show communication activity,
connection status, speeds,
· and mode
information: - SPD (speed) - Yellow LED lights On when
the connection speed is 100 Mbps and turns Off when
· the speed
is 10 Mbps. - L/A (link/activity) - Green LED lights On
when the Ethernet cables are connected and terminated
· correctly,
and blinks when receiving Ethernet data packets.
· AxLink LED
· AxLink Port: 4-pin 3.5 mm mini-Phoenix
(male) connector that provides data and power to external
control devices
· Power Port: 2-pin 3.5 mm mini-Phoenix
(male) connector |
|
|
|

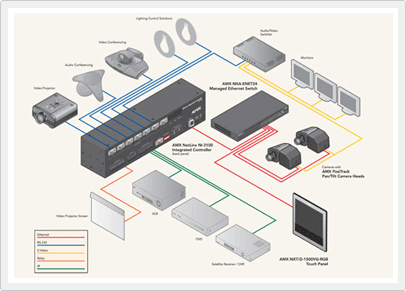

| Diagram |
 |
