 FEATURES |
· Available in 2 or
4 inputs (both versions have 2 outputs)
· Inputs: S-Video, Composite, VGA (up to 1920x1200),
Component (up to 1080p)
· Outputs:
VGA up to 1920x1200 (WUXGA) at 60 Hz
· Integrated
interactive annotation (available via firmware upgrade
2Q 2009) allows the presenter to write or draw on any
· of
the live video images, freeze the onscreen video to allow
annotation over a still picture, and store them as JPEGs
for
· later use.
· Creates the best picture
possible with an integrated scaler to improve the quality
of projected video by scaling graphics
· or video signals to match the native resolution of the
display or projector
· Easily integrates
with Apple and Microsoft computers, saving space and extra
equipment with the ability to control up to
· four Apple and/or Microsoft computers simultaneously via
one USB keyboard and mouse |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
· 2 1/4” x 17” x 10
1/4” (5.7 cm x 43.2 cm x 26.1 cm)
· RU:2 |
|
|
|
| WEIGHT |
| · 8.25 lbs (3.74 kg) |
|
|
|
| POWER |
| · Constant current
draw: 2.6 A @ 12 VDC |
|
|
|
| MEMORY |
· 256 MB SDRAM
· 256 MB disk memory |
|
|
|
| INPUT FORMAT |
· Composite, S-Video,
Component, RGB
· 640 x 480 @ 60Hz
up to 1920 x 1200 @ 60Hz |
|
|
|
| OUTPUT FORMAT |
· VGA
· Up to 1920 x 1080 @ 60 Hz |
|
|
|
| FRONT COMPONENTS |
· Touch Input connector
communicates with the touch panel
· 2
USB ports (for keyboard and mouse control)
· LED Indicators - PWR, NetLinx Master status,
and 4 yellow LEDs for each source input (TPI-PRO-DVI-4
only)
· LED Indicators - PWR, NetLinx
Master status, and 2 yellow LEDs for each source input
(TPI-PRO-DVI-2 only)
· Pushbuttons
- RESOLUTION, TOUCH, CALIBRATE, and SETUP |
|
|
|
| REAR CONNECTORS |
· HD-15 connectors
- 4 input sources (TPI-PRO-4 only)
· HD-15
connectors - 2 input sources (TPI-PRO-2 only)
· 4 USB Type-B ports for source mouse/keyboard
control (TPI-PRO-4 only)
· 2 USB
Type-B ports for source mouse/keyboard control (TPI-PRO-2
only)
· Touch Input connectors:
RS-232 (DB9) 9-pin serial port and 2-USB Type-A
· (Host ports - can be used for keyboard and mouse
control)
· 2 HD-15 VGA Output connectors
to send out a maximum resolution of 1920 x 1200 @ 60Hz
· 1 RJ-45 Ethernet port for network
control
· Audio connector for use
with a 3.5 mm mini-jack |
|
|
|
| ENCLOSURE |
| · Metal with black
matte finish |
|
|
|
| BTU/HR |
| · 106.6 |
|
|
|
| INCLUDED ACESSORIES |
· 2-pin PWR connector
(41-5025)
· Assembly Kit (Four-
#10-32 screws and Four-#10 washers) (KA0001)
· TPI-Pro Quick Start Guide (93-2275-101)
· Rack Ear brackets (Left/Right) for
shelf, wall, and under-table mounting (60-0900-03) |
|
|
|

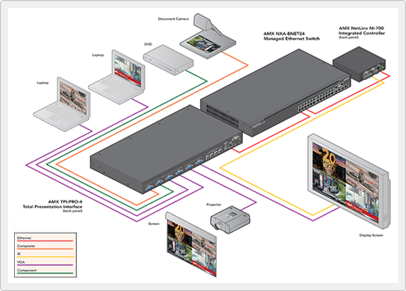

| Diagram |
 |
