 FEATURES |
· 8.4" color active-matrix
TFT with 4x3 Aspect Ratio
· Screen
Resolution (HV): 800x600 pixels with Anti-Glare Overlay
· Display colors: 256 K (18 bit
color depth)
· Intercom with VoIP
technology
· Built-in speaker and
microphone
· Enhanced G.711 telephone
- voice - quality sound
· 128 MB
RAM/512 MB CompactFlash Memory (upgradeable)
· 802.11g WiFi for two-way network communications
· Nine programmable hard buttons
· Operates with two MVP-BP Battery
Packs
· 12 VDC Power Supply for
recharging batteries |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
· 7 3/16” x 10 1/2”
x 1 1/4” (18.2 cm x 26.6 cm x 3.1 cm)
|
|
|
|
| WEIGHT |
· 2.0 lbs (910 g)
· Panel with one battery: 2.25 lbs (1.02
kg)
· Panel with two batteries:
2.65 lbs (1.20 kg) |
|
|
|
| SCREEN PROPERTIES |
· Screen resolution:
800 x 600 pixels (HV) @ 60 Hz frame frequency
· Aspect ratio: 4 x 3
· Brightness
(luminance): 180 cd/m2
· Channel
transparency: 8-bit Alpha blending
· Contrast
ratio: 350:1
· Display colors: 256K
colors (18-bit color depth)
· Dot/pixel
pitch: 0.21 mm
· Panel type: TFT
Color Active-Matrix |
|
|
|
| POWER REQUIREMENT (while
charging) |
Panel while charging batteries:
· Constant current draw:
3.3 A @ 12 VDC
· Startup current
draw: 3.9 A @ 12 VDC
· If panel
is mounted onto a TDS or WDS, add 0.1 A to the above figures |
|
|
|
| MINIMUM POWER SUPPLY REQUIRED |
· PS4.4 Power Supply
(FG423-45) -All MVP models ship with this power supply
POWER MODES
· ON
: Panel is fully functional.
· STANDBY
: Panel uses low power, the LCD/backlight is shutdown,
LEDs still function. Panel resumes the ON mode in
· STANDBY
:~ 1 second.
· OFF : On-board
programs not running, touch screen still powered, LED
not functional. Panel resumes the ON mode in
· OFF : ~ 30
seconds. |
|
|
|
| BATTERY DURATION (using 2
batteries) |
· Eight hours of normal
use (25% On state, 25% Standby, and 50% Off)
· Four hours of continuous use (continuous On state). The
MVP-8400i panel is shipped with two MVP-BP batteries.
You
· must use both batteries to obtain the duration times given
above. |
|
|
|
| MEMORY |
· 128 MB SDRAM
· 512 MB Compact Flash (upgradeable to
1 GB) ? factory programmed
· OPERATING/STORAGE
ENVIRONMENTS
· Operating Temperature:
0° C (32° F) to 40° C (104° F)
· Operating
Humidity: 20% - 85% RH
· Storage
Temperature: -20° C (-4° F) to 60° C (140° F)
· Storage Humidity: 5% - 85% RH |
|
|
|

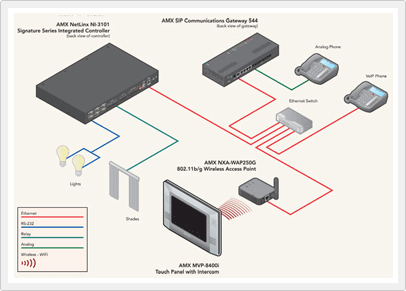

| Diagram |
 |
