 FEATURES |
· Ultra-light, compact and thin form factor
· IR signal communications
· Controls up to 10 devices within the room
· High-gloss black styling
· Charging options include table charging station (MVP-TCS52) and wall charging station (MVP-WCS52)
· Cost effective |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
| · 4 3/4" x 7 9/16" x 13/16" (12.1 cm x 19.2 cm x 2.0 cm) |
|
|
|
| WEIGHT |
| · 1.25 lbs (570 grams) |
|
|
|
| POWER REQUIREMENTS (Without Charging ) |
Panel with battery fully charged or with no battery:
· Constant current draw: 0.3 A @ 12 VDC
· Startup current draw: 0.4 A @ 12 VDC
|
|
|
|
| POWER REQUIREMENTS (WHILE CHARGING) |
Panel while charging battery:
· Constant current draw: 2.0 A @ 12 VDC
· Startup current draw: 2.6 A @ 12 VDC
|
|
|
|
| MINIMUM POWER SUPPLY REQUIRED |
· PS3.0 Power Supply (FG423-30) - both 120 VAC and 240 VAC models are shipped with this power supply.
|
|
|
|
| POWER MODES |
· Awake: All necessary modules are powered up and device remains online with the NetLinx Master.
· Asleep: Only the backlight will be turned off after the user selectable time of inactivity has elapsed.
· Panel resumes the ON mode in ~ 1 second upon a momentary press of the touchscreen.
· Processor Shutdown: Power to all peripherals and components is turned off.
· The system remains in this mode until either it is rebooted or the battery is completely drained.
· The panel is re-activated by pressing the touchscreen and holding until the AMX splash screen appears. |
|
|
|
| BATTERY DURATION |
· 4 days of normal use (25% On state, 25% Standby, and 50% Off).
· 6 hours of continuous use (continuous On state) |
|
|
|
| MEMORY |
· 128 MB Mobile DDRAM (upgrade not available)
· 256 MB NAND Flash (upgrade not available) |
|
|
|
| SCREEN PROPERTIES |
· Screen resolution: 800 x 480 pixels (HV) @ 60 Hz frame frequency
· Type: WVGA
· Aspect ratio: 16 x 9
· Brightness (luminance): 300 cd/m2
· Channel transparency: 8-bit Alpha blending
· Contrast ratio: 400:1
· Display colors: 262,144 colors (18-bit color depth)
· Dot/pixel pitch: 0.23 mm
· Panel type: TFT Color Active-Matrix |
|
|
|

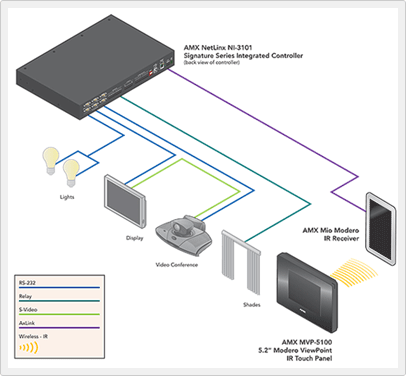

| Diagram |
 |
