 FEATURES |
· 10” active-matrix
display with 16:9 aspect ratio
· Screen
Resolution (HW): 800 x 480 pixels
· Display
colors: 256K (18-bit color depth)
· Supports
analog stereo audio, Composite Video and S-Video
· Composite/S-Video inputs via NXA-AVB/Ethernet
Breakout Box
· ·Playback of MP3
and WAV audio files
· Built-in Speakers
(2) and microphone
· Motion Sensor
(PIR) and Light Sensor
· 64 MB SDRAM/512
MB CompactFlash Memory (upgradeable)
· Wired
10/100 Ethernet |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
| · 7 15/16” x 11 3/16”
x 3 5/16” (20.2 cm x 28.3 cm x 8.4 cm) |
|
|
|
| WEIGHT |
| · 2.65 lbs (1.20 kg) |
|
|
|
| POWER |
· Constant current
draw: 1.2 A @ 12 VDC (stand alone)
· Startup
current draw: 1.8 A @ 12 VDC (stand alone)
· Minimum Power Supply Required: PSN2.8 Power Supply
(FG423-17)
· (Using
accessories can increase the power draw requirements) |
|
|
|
| MEMORY |
· 64 MB on-board memory
· 512 MB Compact Flash (upgradable
to 1 GB factory programmed) |
|
|
|
| PANEL LCD PARAMETERS |
· Aspect ratio: 16:9
· Brightness: 350 cd/m2
· Channel transparency: 8-bit Alpha blending
· Contrast ratio: 250:1
· Display colors: 256K (18-bit color depth)
· Dot/pixel pitch: 0.28 mm
· Screen resolution (HV): 800 X 480 pixels @ 60
Hz frame frequency
· Video formats:
NTSC, PAL, and SECAM |
|
|
|

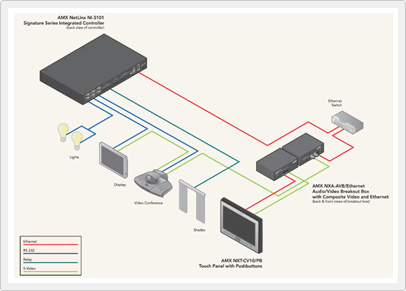

| Diagram |
 |
