 FEATURES |
· Ultra-light, compact
and thin form factor
· Available
in your choice of high-gloss black or high-gloss white
· Navigation wheel provides simple
(up/down) or sophisticated control (up/down, right/left,
select)
· Enhanced usability with
microphone and speakers
· Faster
processing and energy efficient
· Versatile
placement options including integrated kickstand, table
charging station and wall charging station |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
· Touch Panel: 4 5/8”
x 7 1/2” x 3/4” (11.7 cm x 19.1 cm x 2.0 cm)
· Total Packaging Dimensions: 6 1/4” x 5 1/8” x
5” (14.2. cm x 6.5 cm x 4.1 cm) |
|
|
|
| WEIGHT |
· Touch Panel: 1.2
lbs (600 g)
· Total Shipping Weight:
2.3 lbs (1.2 g) |
|
|
|
| POWER REQUIREMENTS (Without
Charging ) |
Panel with battery fully charged
or with no battery :
· Constant
current draw: 0.3 A @ 12 VDC
· Startup
current draw: 0.4 A @ 12 VDC |
|
|
|
| POWER REQUIREMENTS (WHILE
CHARGING) |
Panel while charging battery
:
· Constant current draw:
2.0 A @ 12 VDC
· Startup current
draw: 2.6 A @ 12 VDC |
|
|
|
| MINIMUM POWER SUPPLY REQUIRED |
| · PS3.0 Power Supply
(FG423-30): All MVP-5200i models are shipped with this
power supply |
|
|
|
| POWER MODES |
· Awake : All necessary
modules are powered up and device remains online with
the NetLinx Master.
· Asleep : Display
and wheel backlight will be turned off after the user
selectable time of inactivity has elapsed. Panel
· Asleep : resumes the ON mode in ~ 1 second.
· Processor Shutdown : Power to all modules and
components is turned off. The unit remains in this mode
until either it is
· Processor Shutdown
: rebooted or the battery is completely shut down. |
|
|
|
| BATTERY DURATION |
· Four days of normal
use (25% On state, 25% Standby,and 50% Off)
· Eight hours of continuous use (continuous On
state) |
|
|
|
| MEMORY |
· 128 MB Mobile DDRAM
· 256 MB NAND FLASH |
|
|
|
| SCREEN PROPERTIES |
· Screen resolution:
800 x 480 pixels (HV) @ 60 Hz frame frequency
· Type: WVGA
· Aspect ratio:
16 x 9
· Brightness (luminance):
300 cd/m2
· Channel transparency:
8-bit Alpha blending
· Contrast
ratio: 300:1
· Display colors: 262,144
colors (18-bit color depth)
· Dot/pixel
pitch: 0.23 mm
· Panel type: TFT
Color Active-Matrix |
|
|
|

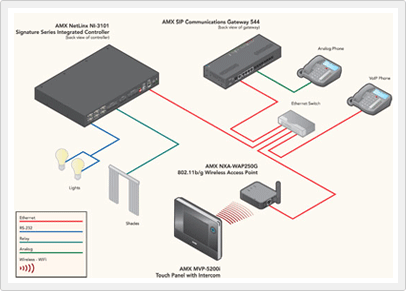

| Diagram |
 |
