| Interface |
RJ45 Gigabit Ethernet |

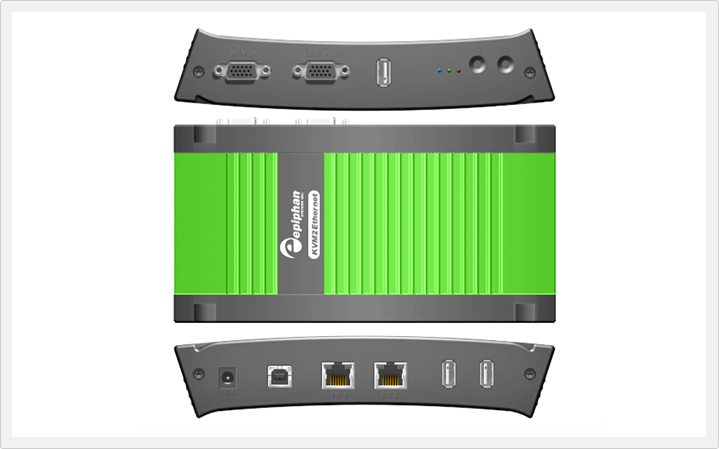

| Connectors |
Two VGA D type connectors
Two Ethernet RJ45 connectors
Two PS/2 and USB keyboard/mouse connectors
One USB type A connector
One 5V DC power supply connector or Power-Over-Ethernet |
| VGA Signaling |
Supports the following signaling:
R,G,B plus separate HSYNC and VSYNC signals;
R,G,B plus CSYNC signal;
R,G,B with Sync-On-Green synchronization. |
| VGA Modes |
HSYNC rate is between 15KHz and
150KHz
Pixel rate is between 12MPixel/s and 270 MPixel/s
for non- interlaced grab Pixel rate is between 270
MPixel/s and 532MPixel/s for two consequent frame
interlaced grab. |
| VGA Modes |
HSYNC rate is between 15KHz and
150KHz Pixel rate is
between 12MPixel/s and 270 MPixel/s for noninterlaced
grab
Pixel rate is between 270 MPixel/s and 532MPixel/s
for two
consequent frame interlaced grab. |
| Color
Resolution |
RGB24 (8:8:8), RGB16 (5:6:5),
RGB8 (2:3:3), YUY2 UYUV |
| Supported
Video Modes |
VESA modes: 720×400, 640×480,
800×600, 1024×768, 1152×864, 1152×900, 1280×960,
1280×1024, 1600×1200. Custom VGA modes. |
| Update
Rate |
Frame rate varies depending on
content and connection |
| Resolution |
Maximum Frame
rate |
| 640 x 480 |
60.0 - 120.0 fps |
| 800 x 600 |
45.2 - 120.0fps |
| 1024 x 768 |
30.0 - 120.0fps |
| 1280 x 1024 |
20.0 - 102.0fps |
| 1600 x 1200 |
16.0 - 66.0fps |
|
|
| Video
Format Options |
RGB plus HSync and VSync (5 wire) |
| LEDs |
Three LED to indicate the status
of the VGA2Ethernet (power, readiness, and operation
in progress) |
| OS Support |
Windows 2000, Windows XP, Windows
Vista (x86, amd64). Coming shortly: Mac OS X 10.3
and up, Linux(x86, amd64) |
Additional
Hardware
Features
|
Internal 2-port Ethernet hub |
| Dimensions |
7.95"×4.13"×1.38",
202×105×35 mm |
| Weight |
0.7 lb, 318 g |

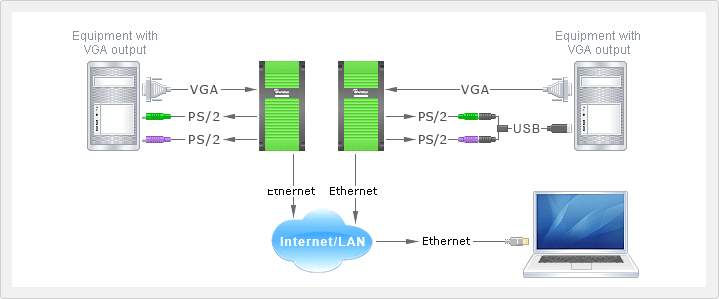

KVM2Ethernet Connection Diagram
