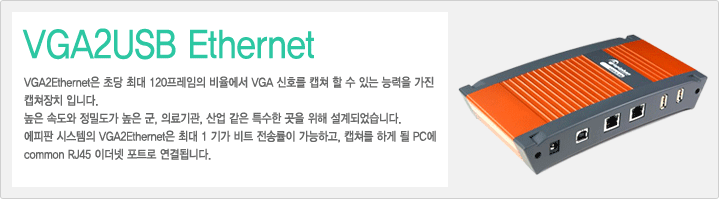

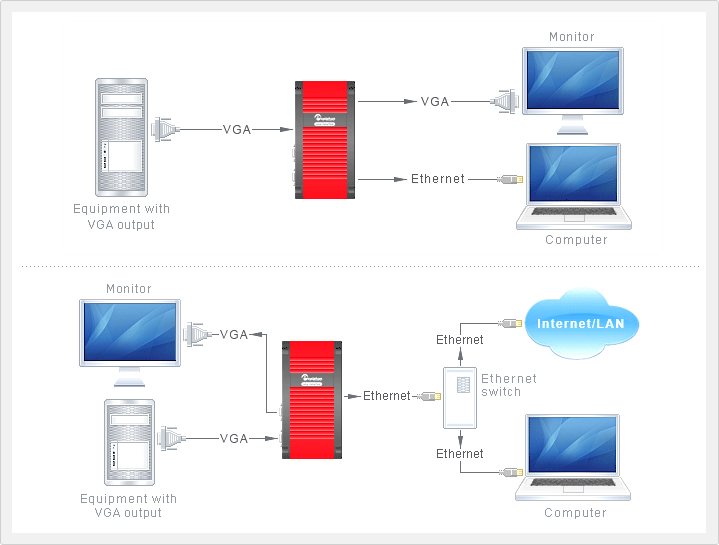

 VGA2Ethernet Connection Diagram |
 |
|
|
|
| Technical Specifications |
| Interface |
RJ45 Gigabit Ethernet |
| Dimensions |
7.95"×4.13"×1.38",
202×105×35 mm |

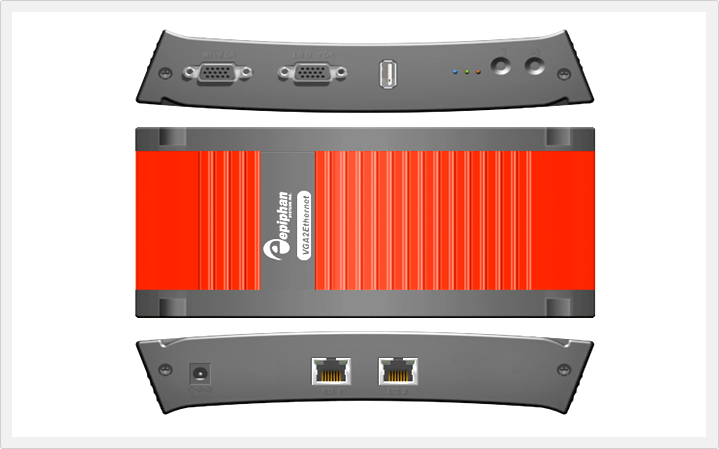

| Connectors |
Two VGA D type connectors
Two Ethernet RJ45 connectors
One USB type A connector
One 5V DC power supply connector or Power-Over-Ethernet |
| VGA Signaling |
R,G,B plus separate HSYNC and
VSYNC signals;
R,G,B plus CSYNC signal;
R,G,B with Sync-On-Green synchronization. |
| VGA Modes |
HSYNC rate is between 15KHz and
150KHz Pixel rate is
between 12MPixel/s and 270 MPixel/s for noninterlaced
grab
Pixel rate is between 270 MPixel/s and 532MPixel/s
for two
consequent frame interlaced grab. |
| Color
Resolution |
RGB24 (8:8:8), RGB16 (5:6:5),
RGB8 (2:3:3), YUY2 UYUV |
| Supported
Video Modes |
VESA modes: 720x400, 640x480,
800x600, 1024x768,
1152x864, 1152x900, 1280x960,1280x10241, 1600x1200,
1920x1200, 2048x1536, 2048x20481.Custom VGA modes |
| Update
Rate |
Frame rate varies depending on
content |
| Resolution |
Frame rate |
| 640 x 480 |
60.0 - 120.0fps |
| 800 x 600 |
45.2 - 120.0fps |
| 1024 x 768 |
30.0 - 120.0fps |
| 1280 x 1024 |
20.0 - 102.0fps |
| 1600 x 1200 |
16.0 - 66.0fps |
| 2048 x 1536 |
12.0 - 50.0fps |
| 2048 x 2048 |
10.0 - 40.0fps |
|
|
| Video
Format Options |
RGB plus HSync and VSync (5 wire) |
| LEDs |
Three LEDs to indicate the status
of the VGA2USB (power, readiness, and operation
in progress) |
| OS Support |
Linux (x86, amd64), Windows 2000,
Windows XP, Windows
Vista (x86, amd64), Mac OS X 10.3 and up |
| Additional
Hardware |
Features Internal 2-port Ethernet
hub |
| Weight |
0.7 lb, 318 g |
|
|
