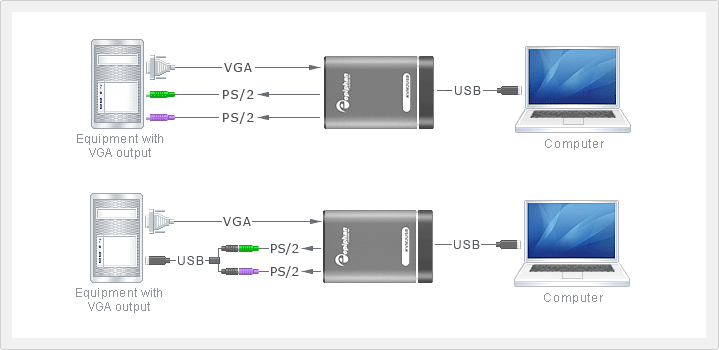

 KVM2USB Connection Diagram |
 |
|
|
|
| Technical Specifications |
| Interface |
USB 2.0 (at laptop
end), VGA, PS/2 keyboard, PS/2 mouse Optional USB
cables are included for USB keyboard and mouse
support.
- PC Cable Interface
 |
6 pin mini-DIN Male |
 |
6 pin mini-DIN Male |
 |
15 pin HDB Male |
|
- Laptop Interface
 |
USB A Type Male |
|
|
| Supported
Video Modes |
640x350 - 1280x1024, 60Hz - 85Hz |
| Dimensions |
3.54" x 2.36" x 0.91"
90 x 60 x 23 mm. |

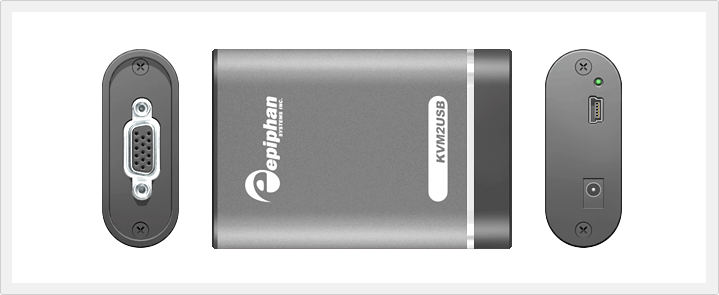

| Connectors |
One VGA D-type connector
One USB mini B-type connector
Two PS/2 connectors for mouse and keyboard
Optional USB mouse/keyboard cables included
One DC power connector for included power adaptor |
| LEDs |
One LED to indicate the status
of the KVM2USB
(power, readiness, and operation in progress) |
| Operating
System Support |
Windows 2000, Windows XP, Windows
Vista (x86, amd64) Mac OS X 10.4 and up |
|
|
|
|

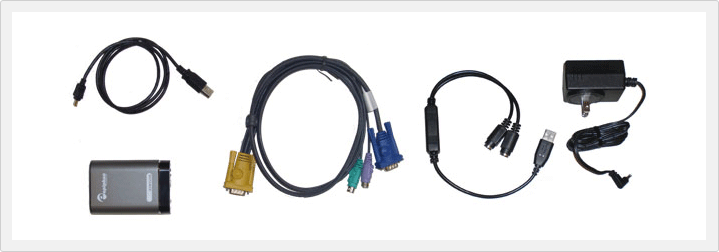

| KVM2USB box contents |
 |
|
