Model

C-3GHDSDI-HDMI

Description

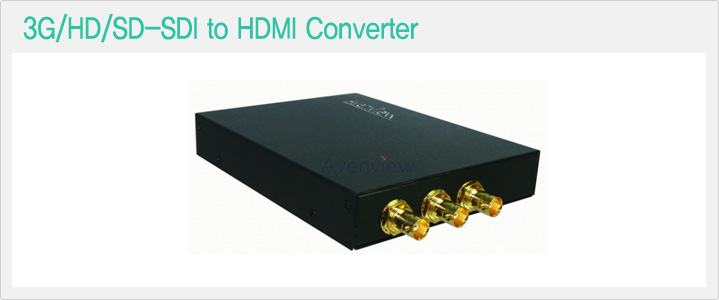

3G/HD/SD-SDI to HDMI Converter

SDI Standards

3G-SDI, HD-SDI, SD-SDI

Auto 3G/HD/SD Detection

Yes

Video Bandwidth

2.97 Gbps, 2.970/1.001 Gbps

Video Suppor

3G: 1080p @50/59.94/60Hz (4:2:2)
HD: 720p @50/59.94/60Hz, 1035i @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz
SD: NTSC @59.94Hz, PAL @50Hz

Input Signal

SD-SDI: SMPTE 259M
HD-SDI: SMPTE 292M, 296M
3G-SDI: SMPTE 424M/425M

Output Signal

HDMI

Audio Mode

7.1 / 5.1 / Stereo

Eye Pattern Characteristics

Extra Low Alignment jitter 0.05UI at HD

Cable Equalization

3G-SDI: up to 60m (200ft)
HD-SDI: up to 150m (500ft)
SD-SDI: up to 300m (1000ft)

Loop Out

2 equalized and reclocked SDI loop outs

Audio Support

Yes

Input

1 x BNC (SDI)

Output

1 x HDMI
2 x BNC (SDI)

BNC Connector

3G 75Ω inter-locked socket

HDMI Connector

Type A (19 pin female)

Power Supply

5V 4A DC

Power Consumption

3 Watt (max)

Operating Temperature

0~40°C (32~104°F)

Storage Temperature

-20~60°C (-4~140°F)

Relative Humidity

20 ~ 90% RH (no condensation)
