SDI Standards

SD-SDI & HD-SDI

Auto HD/SD-SDI Detection

Yes

Video Bandwidth

1.485Gbps & 1.485/1.001 Gbps

Video Support

[HD] 720p50/59.94/60, 1035i50/59.94/60, 1080i50/59.94/60, 1080p24/30
[SD] NTSC@59.94Hz, PAL@50Hz

Input Signal

Component Video

Output Signal

[SD-SDI] SMPTE 259M
[HD-SDI] SMPTE 292M, 296M

Output Impedance

75Ω

Analog /Digital Conversion

12 bits

Synchronization Mode

Internal SYNC or External SYNC

Cable Transmission

[HD-SDI] greater than 125m (410ft)
[SD-SDI] up to 300m (1000ft)

Loop Out

None

No

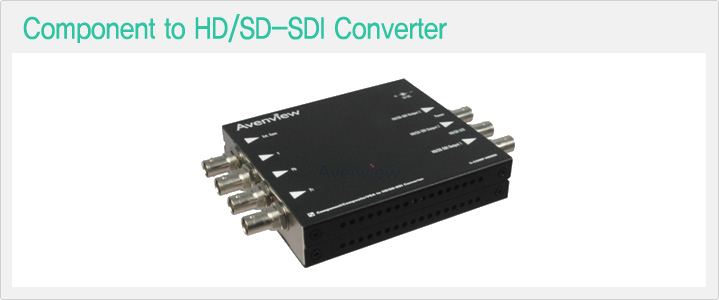

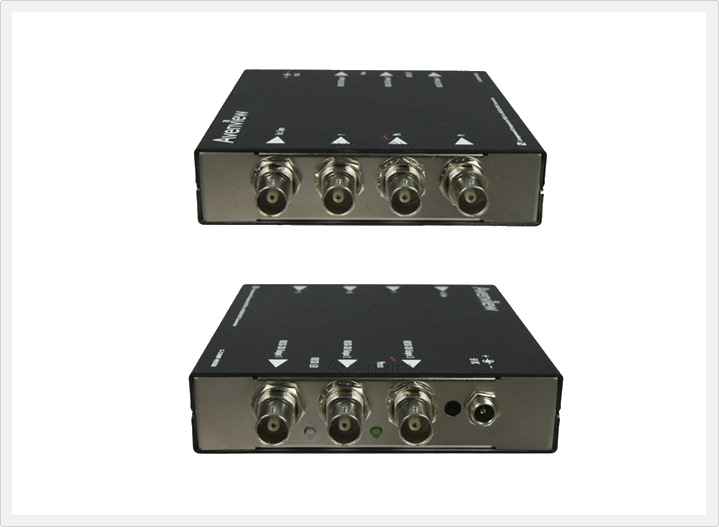

Input

3x BNC [component Y / Pb / Pr]
1x BNC [external sync.]

Output

3 x BNC (SDI)

BNC Connector

75W inter-locked socket

DIP Switch

8-pin u [SW1] Color space mode / [SW2] Sync mode / [SW3&4] Input format

Dimensions

6.3o x 4.3o x 1o (L x W x H)

Weight

1 lb

Power Supply

5V 4A DC

Power Consumption

10 Watts (max)

Operating Temperature

0~40?C [32~104?F]

Storage Temperature

-20~60?C [-4~140?F]

Relative Humidity

20~90% RH [no condensation]
