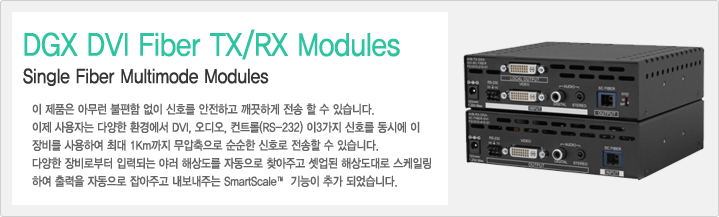

 FEATURES |
· Designed for use with a single strand of multimode fiber; the most common, easily terminated and installed fiber cable solution
· Send and receive video, audio and one-way control over a single fiber cable up to 3,000 feet
· Supports uncompressed video resolutions up to 1920 x 1200 @ 60Hz, including 1080p with a full 4.95 Gbps optical transmission data rate providing lossless pixel for pixel reproduction
· The transmitter module is pre-loaded with the most common EDID settings on the DVI input to emulate the display's response when queried, which ensures transmission of the video from the source device; in addition custom EDID settings can be loaded to the DVI input with the use of the included EDID Programmer
· The receiver module features SmartScale™ Technology automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup
· DGX Technology provides a common signal transport and matrix switching layer that transcodes between analog and digital signals; this allows the DGX DVI and HD-15 TX/RX pairs to be used interchangeably
· Compact enclosure size and compatible with all V Style versatile mounting options including rack, surface or pole
· Backed by our AMX 3 year warranty |
|
|
|
| SPECIFICATIONS |
|
|
|
| GENERAL |
· AC Power: 100-240 VAC single phase, 50-60 Hz; 0.6A @ 115 VAC (Max)
· Power Consumption (Max): 12 V, 1.25A (15W)
· BTU/HR (Max): 51
· Power Connector: 2.1 mm DC Power Jack
· Power Output of Laser Radiation DVI TX (Max): 4.08 mW
· Operational Temperature: 32° to 113° F (0° to 45° C)
· Humidity: 0 to 90% non-condensing
· MTBF: 92,000 hrs
· Compatible AutoPatch Fiber Products:
DGX DVI TX/RX; DGX HD-15 TX/RX
Epica DGX 32, Epica DGX 144
· Advanced Configuration Interface: USB Mini-B
· Fiber Cable Type:
Multimode Simplex (with SC termination)
50/125 μm (preferred) or 62.5/125 μm
· Fiber Cable Length:
Up to 3000 ft with 50um cable*
Up to 1500 ft with 62.5um cable
*3000 ft cable requires 50/125 μm OM2 class low loss fiber cable, transmission distance will vary
depending on the type/quality of fiber used, fiber bandwidth, cable bend radius/kinks, splicing
quality & quantity, and chromatic or modal dispersion
· Optical Budget: 9.75 dBm (Typ) between DGX TX and RX
· Optical Modulation Amplitude (OMA): -6.25 dBm (Typ)
· Optical Modulation Amplitude (OMA) Sensitivity: -16.0 dBm (Typ)
· Fiber Connector: SC Optical |
|
|
|
| DIMENSIONS (HWD) |
· 1 5/8" x 5 13/16" x 5 1/8"
· 4.22 cm x 14.73 cm x 13.08 cm
· RU: 1
|
|
|
|
| VIDEO DVI TRANSMITTER / RECEIVER |
· Resolution Support: 640x480 @ 60Hz up to 1920x1200 @ 60 Hz
· Data Rate (Max): 4.95 Gbps
· Pixel Clock: 25 MHz to 165 MHz
· Digital Processing: Video - 24 bit, 165 MHz |
|
|
|
| VIDEO DGX DVI TRANSMITTER |
· Input Signal Type: DVI-D Input (Single Link)
· DDC/EDID Support: EDID provided by DGX transmitter
· EDID is user reprogrammable
· HDCP Support: No
· Input Voltage (nominal): 1.0 Vpp Differential
· Input Connector: DVI-I (DVI-D Single Link is the supported signal type)
-DVI Local Out Nominal Voltage: 1.0 Vpp Differential
-DVI Local Out Re-clocking (CDR): Yes
-DVI Local Out +5V DDC Pin: 50 mA
-DVI Local Out Rise Time / Fall Time:
-75 ps Min - 240 ps Max (20% - 80%)
-0.12 UI Min - 0.4 UI Max (@ 1.65 Gbps, 20% - 80%)
-DVI Local Output Connector: DVI-I (DVI-D Single Link is the supported signal type) |
|
|
|
| AUDIO DGX HD-15 TRANSMITTER |
· Input Signal Type: Stereo Analog, S/PDIF (2 Channel L-PCM)
· Video signal must be present to pass Audio
· Analog Input Level (max): +8 dBu, unbalanced
· Analog Input Impedance: 2 kOhms
· S/PDIF Resolution: 16 bit to 24 bit
· S/PDIF Sample Rate:32 kHz, 44.1 kHz, 48 kHz, 96 kHz (96 kHz audio only available when
source video resolution is 800x600 @ 60 Hz(40 MHz pixel clock) or greater. Otherwise 48 kHz max.)
· S/PDIF Input Signal Level Range: 200 mVpp to 2.5 Vpp terminated
· S/PDIF Input Impedance: 75 Ohms
· Analog to Digital Reference Level: +8 dBu = 0 dBfs
· Optimal Analog Audio Operating Range: -30 dBu to +8 dBu
· Optimal Digital Audio Operating Range: -38 dBfs to 0 dBfs
· Input Connector:
-3.5 mm Mini-Stereo Jack (Analog Stereo)
-RCA Jack (S/PDIF) |
|
|
|
| SERIAL DATA DGX HD-15 TRANSMITTER |
· Input Signal Type: Unidirectional RS-232, the control signal is transmitted in the same direction as Video/Audio.
· Video signal must be present to pass Serial Data
· Input Signal Level (Max): ± 15V
· Baud Rate (Max): 115.2k Baud, 25ft cable
· Baud Rate (Typ): 57.6k Baud, 150ft Cable
· Input Connector: Pluggable 3.5mm Terminal Block |
|
|
|
| EDID DGX HD-15 TRANSMITTER |
· Standard Timing Identification:
-ID 1: 1920 x 1200 @ 60 Hz*
-ID 2: 1920 x 1080 @ 60 Hz*
-ID 3: 1680 x 1050 @ 60 Hz
-ID 4: 1600 x 1200 @ 60 Hz
-ID 5: 1280 x 800 @ 60 Hz
-ID 6: 1280 x 720 @ 60 Hz
-ID 7: 1280 x 1024 @ 60 Hz
-ID 8: 640 x 480 @ 120 Hz
· Included in the detailed timing block with reduced sync blanking
· Established Timing:
-720 x 400 @ 70 Hz, 88 Hz
-640 x 480 @ 60 Hz, 67 Hz, 72 Hz, 75 Hz
-800 x 600 @ 56 Hz, 60 Hz, 72 Hz, 75 Hz
-832 x 624 @ 75 Hz
-1024 x 768 @ 60 Hz, 70 Hz, 75 Hz, 87 Hz
-1280 x 1024 @ 75 Hz
-1152 x 870 @ 75 Hz
|
|
|
|

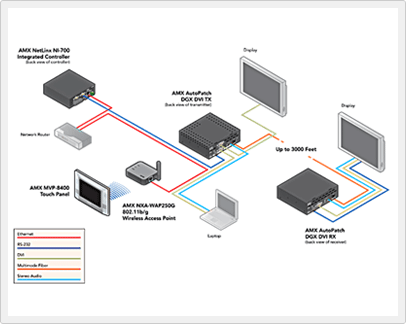

| Diagram |
 |
