Description

Dual Screen Video Image Processor

Video Bandwidth

Supported Resolutions

480i / 480p / 720p / 1080i / 1080p (60) / 1920x1200@75 / 1600x1200@60

Audio Support

No

Control

RS232 / RS485

Embedded Video Mixer

Yes

Ability to Cascade

Yes

Input TMDS Signal

1.2 Volts (peak u peak)

ESD Protection

Human body model - ? 15kV (air gap discharge) & ?8kV (contact discharge)

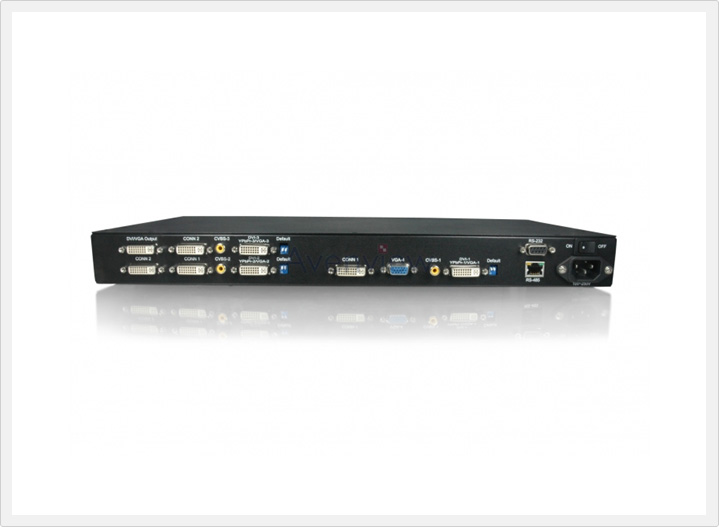

Input

3 x DVI, 1 x VGA
3 x Composite
1 x RS232
1 x RS485

Output

1 x DVI

DVI Connector Type

DVI-I (29-Pin female)

VGA Connector Type

HD-15 (15-pin D-sub female)

S-Video Connector

9 Pin

RS232 Connector

DE-9 (9-pin D-sub female)

RCA Connector

75Ω

RJ45 Connector

WE/SS 8P8C with 2 LED indicators

Dimensions

1Æ5.3" x 1Æ9.5" x 4.3" (L x W x H)

Size

1U Rack-mount with ears

Power Supply

AC 100-240V

Power Consumption

10 Watt (max)

Operating Temperature

0~40°C (32~104°F)

Storage Temperature

-20~60°C (-4~140°F)

Relative Humidity

20 ~ 90% RH (no condensation)
