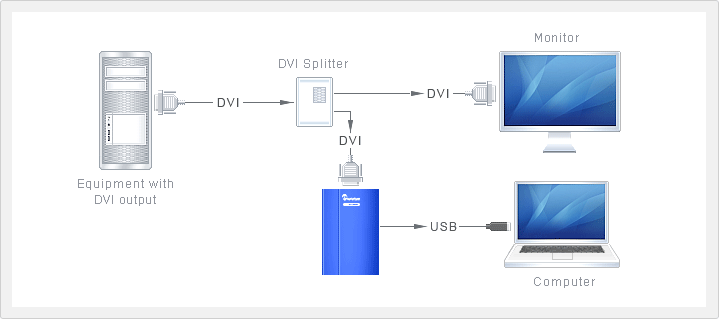

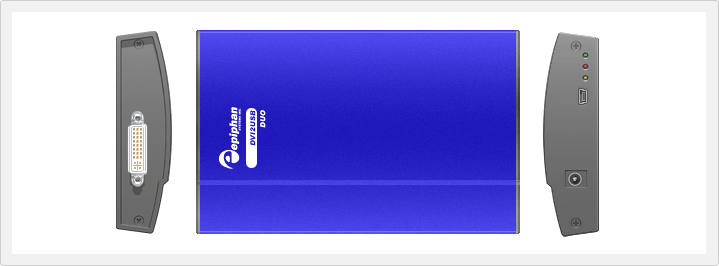

 DVI2USB Duo Connection Diagram |
 |
|
|
|
| Technical Specifications |
| Interface |
USB 2.0 |
| Dimensions |
6.7" x 4.3" x 1.2"
, 170 x 109 x 30 mm |
| Connectors |
DVI dual-link, USB 2.0 |
| Input |
DVI (single-link and dual-link) |
| VGA Signaling |
24 bits per pixel, 8:8:8 format
16 bits per pixel, 5:6:5 format
8 bits per pixel, 3:3:2, 3:2:3, 2:3:3 or 256-grey
scale format
4 bits per pixel, 16-grey scale format |
| Integrated
Board Features |
On-board loss and loss-less image
compression (proprietary)
On-board memory (no-interlacing artifact) |
| Mode
support |
720x400 at 70, 85Hz
640x480 at 60, 70, 72, 75, 85Hz
800x600 at 56, 60, 70, 72, 75, 85Hz
1024x768 at 60, 70, 72, 75, 85Hz
1152x864 at 60, 70, 75, 85Hz
1152x900 at 66, 76Hz
1280x960 at 60, 85Hz
1280x1024 at 60, 70, 75, 85Hz
1600x1200 at 60, 65, 70, 75, 85Hz
1920x1200 at 60, 65, 70, 75, 85Hz
2048x2048 at 60, 65, 70, 75, 85Hz
2560x1600 at 59, 60 |
| Refresh
rate* |
For loss-less frame acquisition |
| Resolution |
DVI2USB fps |
| 640 x 480 |
30.0 - 60 fps |
| 800 x 600 |
22.6 - 60 fps |
| 1024 x 768 |
15.0 - 60 fps |
| 1280 x 1024 |
10.0 - 51 fps |
| 1600 x 1200 |
8.0 - 33 fps |
| 1920 x 1200 |
5.2 - 32 fps |
|
|
| LEDs |
One LEDs to indicate the status
of the VGA2USB (power, readiness, and operation
in progress) |
| OS Support |
Linux (x86, amd64), Windows 2000,
Windows XP, Windows
Vista (x86, amd64), Mac OS X 10.3 and up |
|
|
