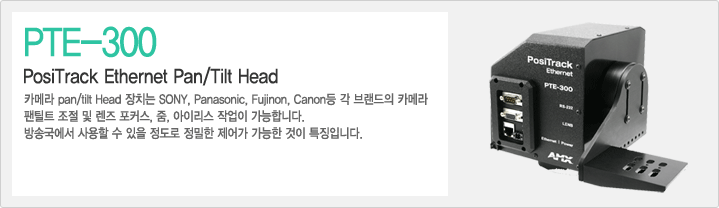

 FEATURES |
· Supports camera loads
up to 30 pounds
· Cradle adjustments
allow camera load to be balanced in horizontal and vertical
axes
· Stores up to 100 5-axis synchronized
presets in on board, non-volatile memory
· Manual local control of pan, tilt, zoom, and
focus via four function 3-axis joyswitch
· Installs on a tripod (TM-CAM), podium (PM-CAM),
or wall (WM-CAM) by using optional mounting adapters
· Controls servo motor lenses in both
positional and speed mode |
|
|
|
| SPECIFICATIONS |
|
|
|
| DIMENSIONS (HWD) |
| · 6 3/8” x 5 3/8” x
6 1/4” (16.3 cm x 13.7 cm x 15.9 cm) |
|
|
|
| WEIGHT |
| · 10.75 lbs. (4.88
kg) |
|
|
|
| COMMUNICATION AND SECURITY |
|
|
|
| POWER |
| · 2.5A @ 24 VDC |
|
|
|
| ENCLOSURE |
| · Metal with black
enamel and black anodized matte finish |
|
|
|
| PRESETS |
| · Up to 100 presets
for pan, tilt, zoom, focus and iris axes |
|
|
|
| SERVO MOTOR LENS CONTROL |
| · Supports positional
and speed modes |
|
|
|
| ANGULAR TRAVEL |
· Pan: +/- 177 degrees
(354 degrees total)
· Tilt: +/-
90 degrees (180 degrees total) |
|
|
|
| ANGULAR TRAVEL |
· Pan: +/- 177 degrees
(354 degrees total)
· Tilt: +/-
90 degrees (180 degrees total) |
|
|
|
| SPEED |
· Pan: 35 deg/sec
· Tilt: 35 deg/sec
· REPEATABILITY:+/- 3 arc minutes |
|
|
|
| CONNECTORS |
· DB-9 for RS-232
camera control
· HD-15 for lens
control
· 2-pin captive wire for
power and ground
· RJ-45 for Ethernet |
|
|
|
| INCLUDED ACCESSORIES |
| · 24 volt DC power
supply (57-0630-SA) |
|
|
|
| OPTICAL CENTERLINE |
· Optical centerline
is between 1/2” and 5” above the mounting plane of the
camera/lens.
· Optical centerline
allows the mounting of the camera/lens such that the tilt
axis is capable of going through the optical axis
· of the
camera. |
|
|
|
| CONTROL PANEL |
· RS-232 DB-9 connector
(for camera control)
· HD-15 high
density connector (for lens control)
· RJ-45
Ethernet port provides 10BaseT communication with the
NetLinx Master
· 2-pin 3.5mm captive-screw
connector for 24VDC power |
|
|
|
| OPERATING TEMPERATURE RANGE |
| · 32º F to 120º F
(0º C to 48.8º C) ambient temperature |
|
|
|
| LENS COMPATIBILITY |
· Fujinon Lenses
· - T14x5.5DA-D58
· -
S14x7.3BWMD-D18
· - S20x6.4BMD-D18
· - S16x6.7BMD-D4M
· - S17x6.7BMD-D4M
· Canon
Lenses
· -
T10x6.5SSB/SC
· - YH14x7.3KTSA
· - YH14x7.3KTSA
· - YH18x6.7KTSA |
